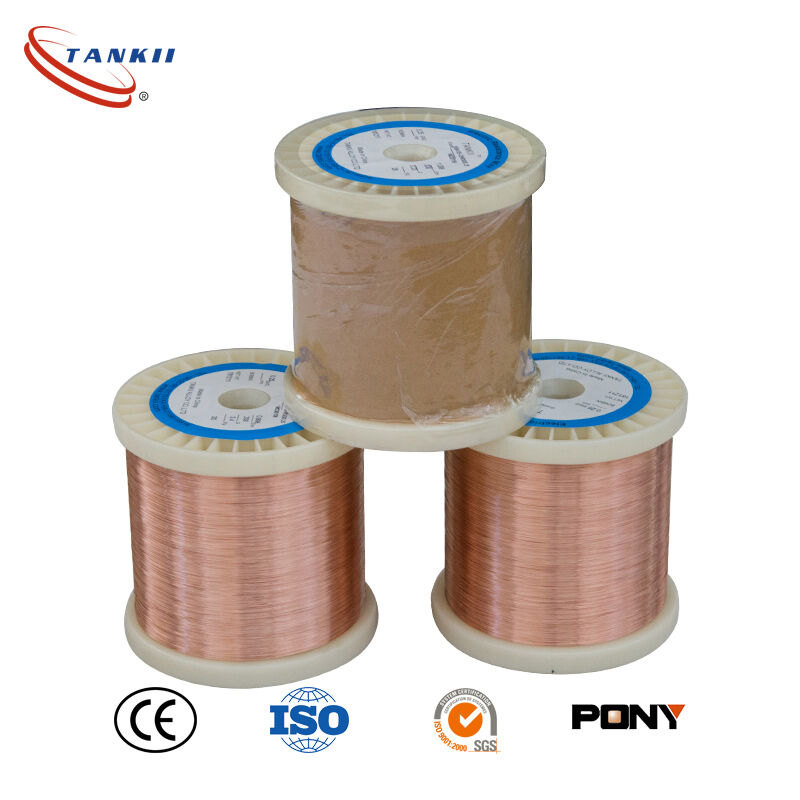

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

รายละเอียดสินค้า

สถานที่กำเนิด: จีน

ชื่อแบรนด์: Tankii

ได้รับการรับรอง: ISO 9001

หมายเลขรุ่น: แมงกานีส 47

เงื่อนไขการชำระเงินและการจัดส่ง

จำนวนสั่งซื้อขั้นต่ำ: 30กก

ราคา: negotiate

รายละเอียดการบรรจุ: กล่องกระดาษ

เวลาการส่งมอบ: 2-3 สัปดาห์

สามารถในการผลิต: 5,000 ตันต่อปี

รับราคาที่ดีที่สุด
ติดต่อตอนนี้
รายละเอียด
เน้น:
วัสดุ:
แมงกานีส 47
แบบอย่าง:
6J12
รูปร่าง:
ลวด/แถบ/ฟอยล์
ความหนาแน่น:
8.4ก./ตร.ซม
การฟื้นคืนชีพ:
47μΩ/ซม
การยืดตัว:
≥15%
ทีซีอาร์:
-3-+20(*10^﹣6/℃)
EMF กับ Cu μV/℃:
≤1
วัสดุ:
แมงกานีส 47
แบบอย่าง:
6J12
รูปร่าง:
ลวด/แถบ/ฟอยล์
ความหนาแน่น:
8.4ก./ตร.ซม
การฟื้นคืนชีพ:
47μΩ/ซม
การยืดตัว:
≥15%
ทีซีอาร์:
-3-+20(*10^﹣6/℃)
EMF กับ Cu μV/℃:
≤1
คําอธิบาย
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
